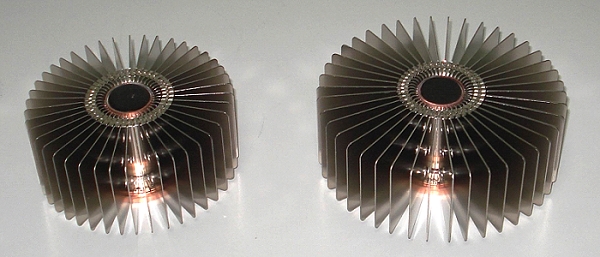

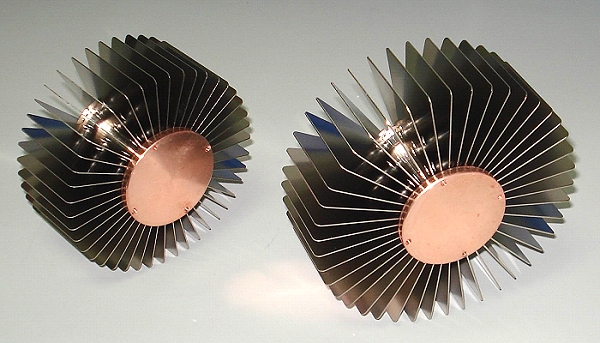

AL interlock fin soldered with Heat Column solution
| Model Name |
Heatsink Spec |
Cooling watts |
Remark |
|
NPH L-Forti-33A |
AL Fin, D:114mm H:61mm |
P < 25 WATTS |
Epoxy,Fortimo |
|
NPH L-Forti-33B |
AL Fin, D:143mm H:55mm |
P < 32 WATTS |
Epoxy,Fortimo |
|
NPH L-Forti-33C |
AL Fin, D:143mm H:80mm |
P < 40 WATTS |
Fortimo |
|
NPH L-12155AL-CITIZEN-C26N |
AL Fin, D:121mm H:61mm |
P < 26 WATTS |
Citizen |
|
NPH L-14380AL-CITIZEN-C41N |
AL Fin, D:143mm H:80mm |
P < 41 WATTS |
Citizen |
|
NPH L-15068-CITIZEN-C26N |
AL Fin, D:148mm H:68mm |
P < 28 WATTS |
Citizen |
|
NPH L-14350AL-33S |
AL Fin, D:143mm H:55mm |
P < 32 WATTS |
BridgeLux |
|
NPH L-15050AL-40S |
AL Fin, D:150mm H:55mm |
P < 35 WATTS |
BridgeLux |
|
NPH L-14350-33S |
AL Fin, D:143mm H:55mm |
P < 40 WATTS |
BridgeLux |
|
NPH L-15050-40S |
AL Fin, D:150mm H:55mm |
P < 45 WATTS |
BridgeLux |
|
NPH L-143100-33S |
AL Fin, D:143mm H:55mm *2 SETS |
P < 60 WATTS |
BridgeLux |
|
NPH L-150100-40S |
AL Fin, D:150mm H:55mm *2 SETS |
P < 75 WATTS |
BridgeLux |
|
NPH L-143150-33S |
AL Fin, D:143mm H:55mm *3 SETS |
P < 90 WATTS |
BridgeLux |
|
NPH L-150150-40S |
AL Fin, D:150mm H:55mm *3 SETS |
P < 120 WATTS |
BridgeLux |
|
NPH L-26090-40S |
AL Fin, D:260mm H:90mm |
P < 120 WATTS |
|
|
NPH L-260180-40S |
AL Fin, D:260mm H:90mm *2 SETS |
P < 200 WATTS |
|
|
NPH L-27690-56S |
AL Fin, D:276mm H:90mm |
P < 150 WATTS |
|
|
NPH L-276180-56S |
AL Fin, D: 276mm H:90mm *2 SETS |
P < 300 WATTS |
|
|
 |
|
|
|
