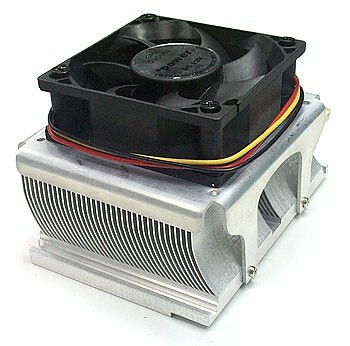

nPOWER NP423S CPU Cooler

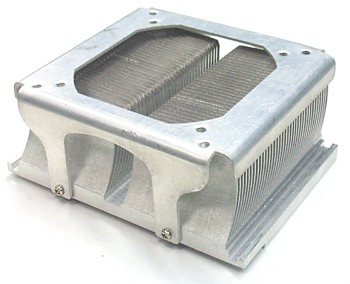

HEAT SINK: FA423D
  • Higher than P4 1.7GHz frequency CPU
  • Weight: 260g
  • Heat Sink Fin: 32 ᠱ Pin
  • Dimensions:  L63.5*W89*H57 (mm)
  • Heat Sink Size: L63.5*W89*H32 (mm)
  • Fan RPM: 5500 ᱰ % RPM
  • Air Flow: 28.95 ᵠ% CFM

n
POWER NP423S SPECIFICATION
Gross Weight 260 g
Dimensions L63.5 *W89 *H57 (mm)
Heat Sink Dimensions L63.5 * W89 * H32 (mm)
Heat Sink Fin32᱐in
Heat Sink Material  Aluminum
Clip Material Steel SK7
Fan Bearing One Ball One Sleeve Bearing
Fan Dimensions L60 * W60 * H20(mm)
Fan MTBF 20,000Hours
Power Connector Molex 2510 3 Pin
Output Signal Yes
Fan RPM 5500 ᱰ % RPM
Air Flow 28.95 ᵠ% CFM
Noise 41.5 dB/A
Fan Safety Standard UL
Rated Voltage DC 12 V
Rated Current 0.28A
Operating Range 6.0 ~ 13.8 VDC
Rated Input 3.36W
