n
POWER

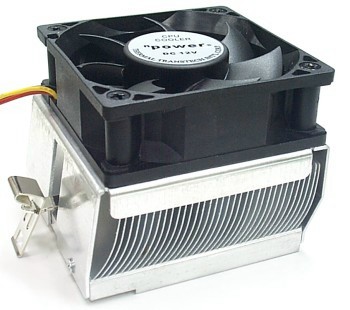

NP60D
CPU Cooler
HEAT SINK
: FA6060-27
Higher than 1.3GHz frequency CPU
Weight: 170g
Heat Sink Fin: 32 ± 1 Pin
Dimensions: L60 *W60 *H50 (mm)
Heat Sink Size:
L60 *W60 *H25 (mm)
Fan RPM: 5500 ±10 % RPM
Air Flow: 28.95 ±5 % CFM
n
POWER NP60D SPECIFICATION
Gross Weight
170 g
Dimensions
L60 *W60 *H50 (mm)
Heat Sink Dimensions
L60 *W60 *H25 (mm)
Heat Sink Fins
32±1Pin
Heat Sink Material
Aluminum
Clip Material
Steel SK7
Fan Bearing
One Ball One Sleeve Bearing
Fan Dimensions
L60 *W60 *H20(mm)
Fan MTBF
20,000Hours
Power Connector
Molex 2510 3 Pin
Output Signal
Yes
Fan RPM
5500 ±10 % RPM
Air Flow
28.95 ±5 % CFM
Noise
41.5dB/A
Fan Safety Standard
UL
Rated Voltage
DC 12 V
Rated Current
0.28A
Operating Range
6.0 ~ 13.8 VDC
Rated Input
3.36W
|
