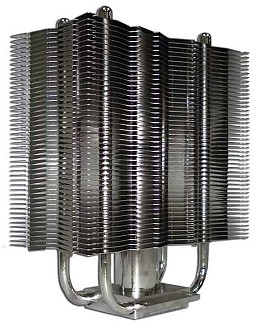

TTIC HURRICANE NPH 105 CPU Cooler



SPECIFICATION

Applications
Supports INTEL Socket 775 , 1156 ,1366
AMD Socket AM2 , AM3
Heat Sink Specification
Weight 660 g (without fan)
Dimension Tube - φ25.4x150 mm, 2 pcs φ6 heat pipe 45Fins
(L)130mm X (W)63.8mmX (H)157.5mm
Material

Heat Column +Heat pipe : Copper C1020 &TP2
AL Fins : AL 1050

Suggestion Fan Specification
Dimensions 120* 120 * 25 (mm)
Bearing Sleeving bearing
Output Signal Yes
Fan RPM 1000~2000RPM  +/-10%
Air Flow 43~49 CFM
Noise 12~29 dB(A)
MTBF 35,000 hr at 25C
Lead Wire Length 400 mm

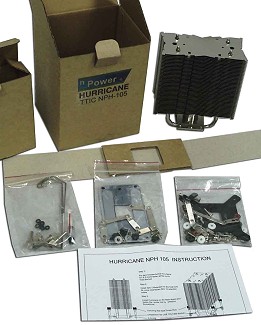

Included Accessories
  • Socket 775 / 1366 /1156 / Socket AM2 / AM3 Back plate
  • Knuring Nut type Screw Rod / - Screw Nuts / Packing
  • Fixed Screw Bolt / - Fan mounting clips/
  • Thermal compound
Product Description & Info
  • Minimal air resistance between fins allowing best balance between noise and performance in range of 1000~2000RPM
  • Heat pipes ad heat column are lined up in a straight line to prevent air back draft allowing air to easily pass through the heat sink body
  • Diameter 25.4mm Heat column Hi-Power cooling capacity design easy for overclock
  • Wide fins with mathematically calculated thickness to maximize best air-to-surface cooling rate.
  • Uniquely designed, easy-to-install socket 775 and 1156 and 1366 & AM2 and AM3 retention mechanism to increase cooling ability.
  • Easy to apply, high grade thermal compound, a perfect sidekick to all nPowertek Hurricane heat sinks.
