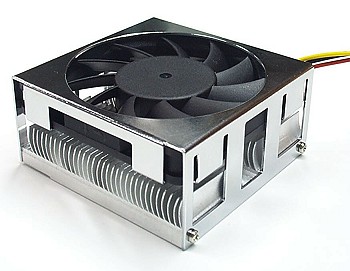

nPOWER NP15D CPU Cooler
  • Higher  than 1 GHz frequency CPU
  • Apply to Industrial PC (IPC), Small desktop, Mini PC, Slim PC
  • Weight: 120g
  • Heat Sink Fin: 31 ᠱ Pin
  • Very Small Size:  L60 *W60 *H26 (mm)
  • Heat Sink Size: L60 *W60 *H15 (mm)
  • Fan RPM: 5300 ᱰ % RPM
  • Air Flow: 18.6 CFM

n
POWER NP15D SPECIFICATION
Gross Weight 120 g
Dimensions L60 *W60 *H26 (mm)
Heat Sink Dimensions L60 *W60 *H13 (mm)
Heat Sink Fin 31 ᠱ Pin
Heat Sink Material  Aluminum
Clip Material Steel SK7
Fan Bearing Sleeve Bearing
Fan Dimensions L60 *W60 *H10 (mm)
Fan MTBF 15,000 hr
Power Connector Molex 2510 3 Pin
Output Signal Yes
Fan RPM 5300 ᱰ % RPM
Air Flow 18.6 CFM
Noise 35 dB/A
Fan Safety Standard UL
Rated Voltage DC 12 V
Rated Current 0.2 A
Operating Range 6.0 ~ 13.8 VDC
Rated Input 2.4 W
