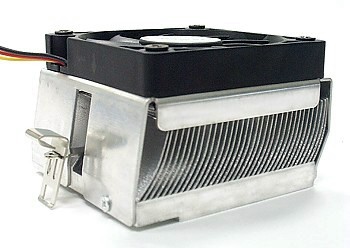

nPOWER NP60E CPU Cooler

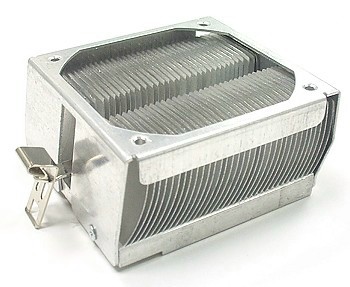

HEAT SINK: FA6060-27
  • Higher than 1.2GHz frequency CPU
  • Weight: 160g
  • Heat Sink Fin: 32 ᠱ Pin
  • Dimensions:  L60 *W60 *H40 (mm)
  • Heat Sink Size: L60 *W60 *H25 (mm)
  • Fan RPM: 5300 ᱰ % RPM
  • Air Flow: 18.6 CFM

n
POWER NP60E SPECIFICATION
Gross Weight 160 g
Dimensions L60 *W60 *H40 (mm)
Heat Sink Dimensions L60 *W60 *H25 (mm)
Heat Sink Fins 32 ᠱ Pin
Heat Sink Material  Aluminum
Clip Material Steel SK7
Fan Bearing Sleeve Bearing
Fan Dimensions L60 *W60 *H10 (mm)
Fan MTBF 15,000 hr
Power Connector Molex 2510 3 Pin
Output Signal Yes
Fan RPM 5300 ᱰ % RPM
Air Flow 18.6 CFM
Noise 35 dB/A
Fan Safety Standard UL
Rated Voltage DC 12 V
Rated Current 0.2 A
Operating Range 6.0 ~ 13.8 VDC
Rated Input 2.4 W
